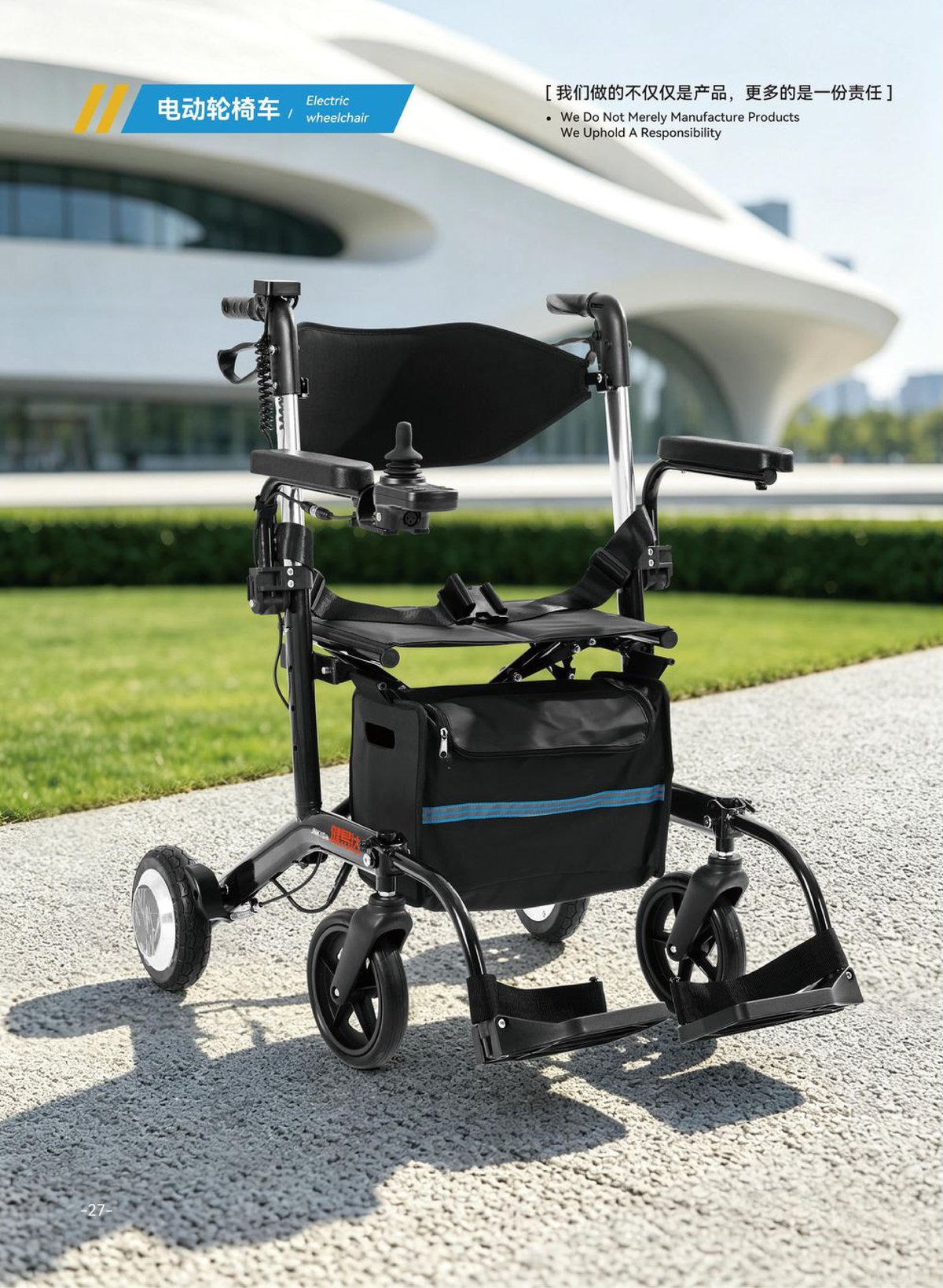

JYD-Z001 Electric Wheelchair with Suspension Seat

Model: JYD-Z001

Category: Electric Wheelchair | Load: 100 kg | Weight: 17.8 kg

Suspension seat with woven nylon sling for pressure relief
Flip-back armrest
Effortless folding
Hook-type detachable footrest

Request a Quote for JYD-Z001

Also available: suspension wheelchair · pressure relief wheelchair · comfort electric wheelchair. OEM/ODM, wholesale and export worldwide.

Technical Specifications

Dimensions & Weight

Overall Length	960 mm
Overall Width	620 mm
Overall Height	940 mm
Folding Length	660 mm
Folding Width	300 mm
Folding Height	800 mm
Gross Weight	17.8 kg
Frame Material	Aviation titanium aluminum alloy

Load &Seating

Load Capacity	100 kg
Seat Width	420 mm
Seat Depth	300 mm
Seat Height	510 mm
Front Wheel	8\
Rear Wheel	8\

Power

Battery	24V / 6A lithium
Motor	150W x 2

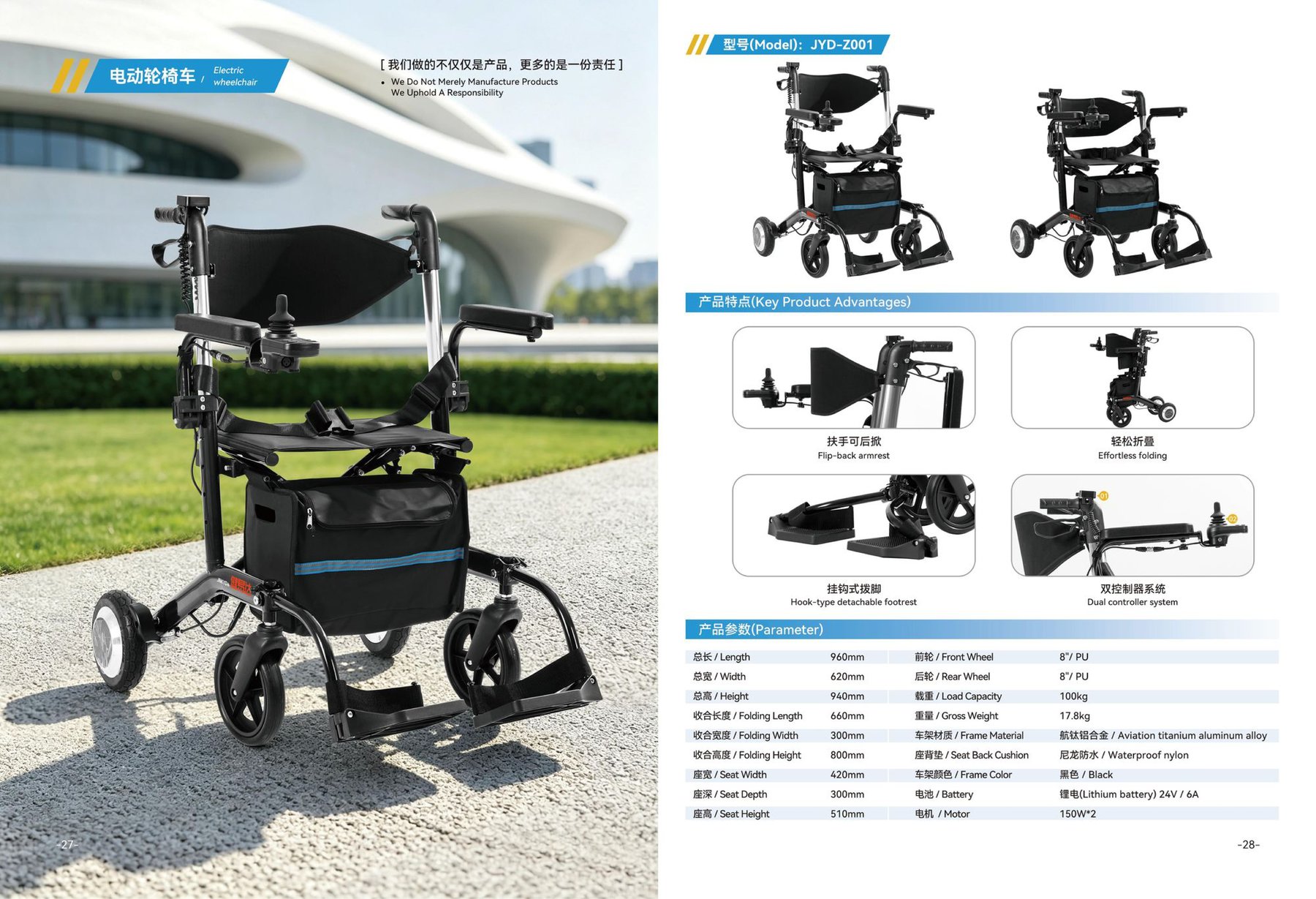

Product Catalog Sheet

Original page from the Jingshi product catalogue.

Request a Quote for JYD-Z001

Why buyers choose JYD-Z001

JYD-Z001 Electric Wheelchair with Suspension Seat from Dongguan Jingshi Technology is built for B2B buyers who need consistent quality and clear specifications. Every unit is checked before shipment, and the model is tested to EN 12184 and ISO 7176 standards. We supply distributors, importers and healthcare brands worldwide, with OEM/ODM branding, custom colours and packaging available.

Full catalogue and test reports: Downloads page · Certifications: EN 12184 & ISO 7176 · See it in action: product videos
