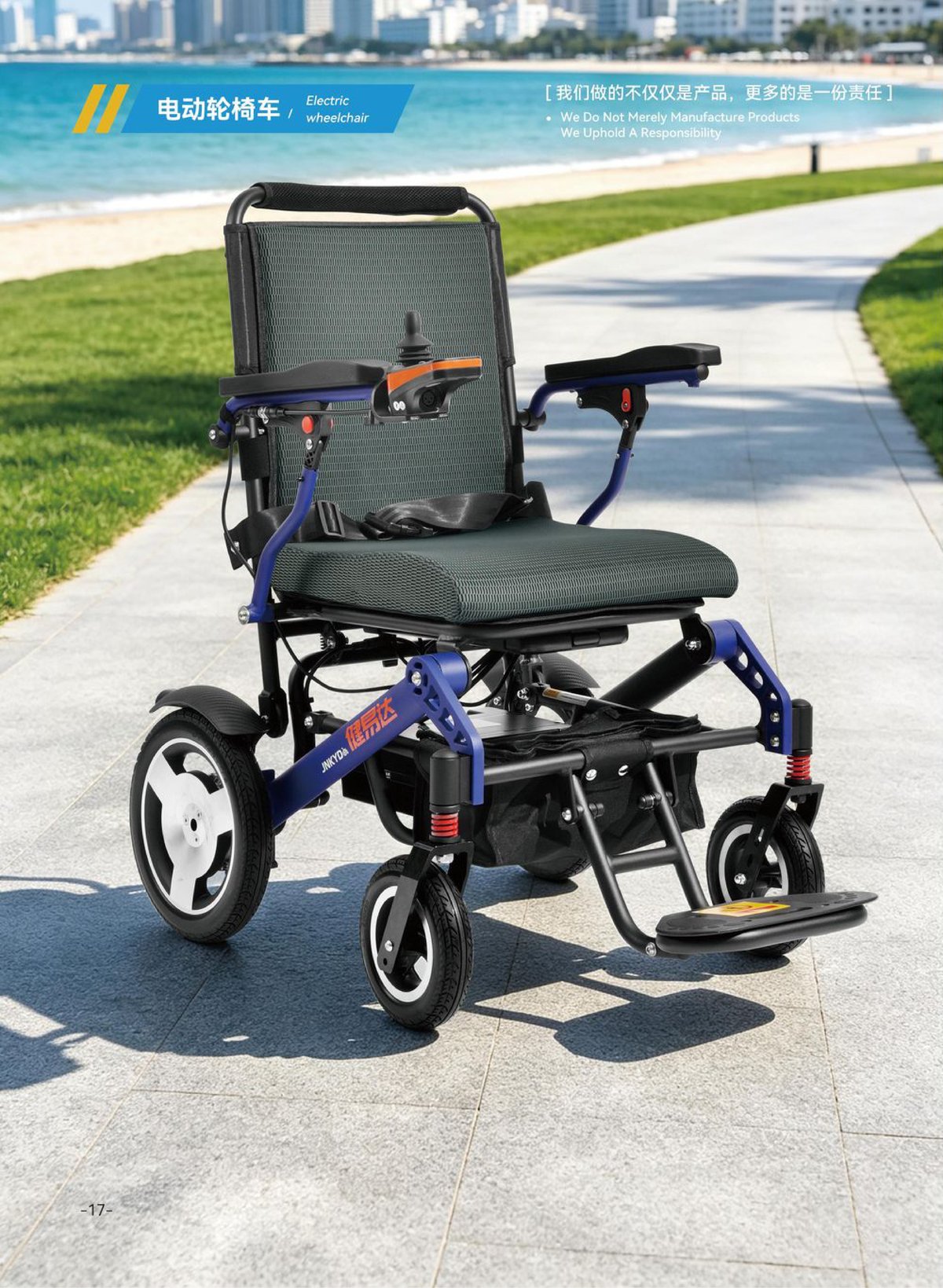

JYD-B-W002F12 Compact Folding Electric Wheelchair

Model: JYD-B-W002F12

Category: Electric Wheelchair | Load: 100 kg | Weight: 23.5 kg (battery not included)

7 cm thickened cushion with ergonomic high-front & low-back design
Double folding footrest for compact storage
12-inch thickened aluminum alloy wheel hub

Request a Quote for JYD-B-W002F12

Also available: foldable electric wheelchair · lightweight folding wheelchair · travel wheelchair. OEM/ODM, wholesale and export worldwide.

Technical Specifications

Dimensions & Weight

Overall Length	950 mm
Overall Width	580 mm
Overall Height	940 mm
Folding Length	420 mm
Folding Width	580 mm
Folding Height	440 mm
Gross Weight	23.5 kg (battery not included)
Frame Material	Aviation titanium aluminum alloy

Load &Seating

Load Capacity	100 kg
Seat Width	440 mm
Seat Depth	440 mm
Seat Height	520 mm
Front Wheel	8\
Rear Wheel	12\

Power

Battery	24V / 12A-20A lithium
Motor	United 200W x 2

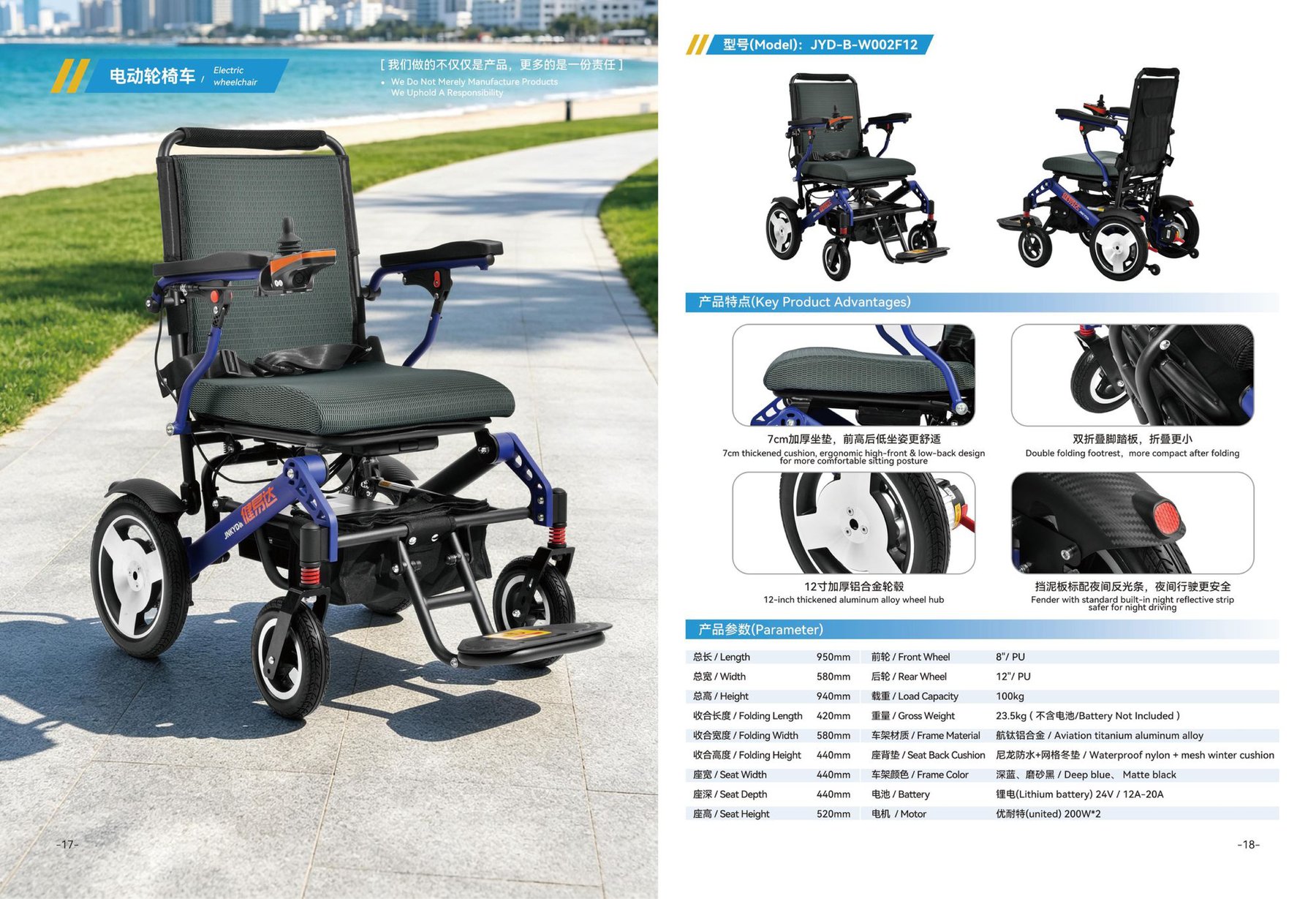

Product Catalog Sheet

Original page from the Jingshi product catalogue.

Request a Quote for JYD-B-W002F12

Why buyers choose JYD-B-W002F12

JYD-B-W002F12 Compact Folding Electric Wheelchair from Dongguan Jingshi Technology is built for B2B buyers who need consistent quality and clear specifications. Every unit is checked before shipment, and the model is tested to EN 12184 and ISO 7176 standards. We supply distributors, importers and healthcare brands worldwide, with OEM/ODM branding, custom colours and packaging available.

Full catalogue and test reports: Downloads page · Certifications: EN 12184 & ISO 7176 · See it in action: product videos
