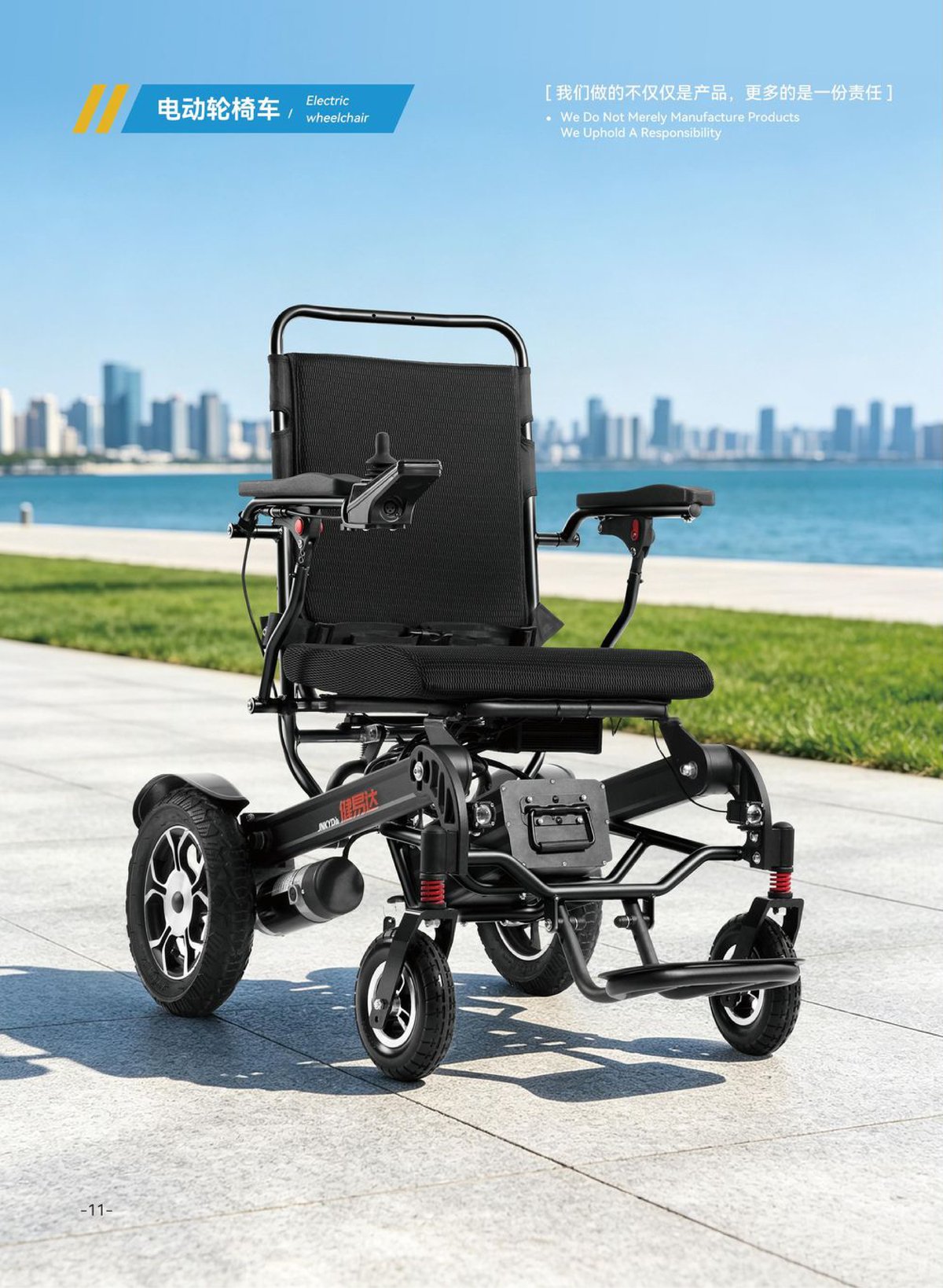

JYD-B-W002 Heavy-Duty Worm Drive Electric Wheelchair

Model: JYD-B-W002

Category: Electric Wheelchair | Load: 100 kg | Weight: 35 kg

1000W worm gear & worm drive motor for strong power
12-inch widened rear wheel, more wear-resistant
LED headlight for safer night driving

Request a Quote for JYD-B-W002

Also available: heavy duty electric wheelchair · outdoor all-terrain wheelchair · rugged wheelchair. OEM/ODM, wholesale and export worldwide.

Technical Specifications

Dimensions & Weight

Overall Length	1150 mm
Overall Width	650 mm
Overall Height	1040 mm
Folding Length	860 mm
Folding Width	650 mm
Folding Height	450 mm
Gross Weight	35 kg
Frame Material	Aviation titanium aluminum alloy

Load &Seating

Load Capacity	100 kg
Seat Width	510 mm
Seat Depth	430 mm
Seat Height	530 mm
Front Wheel	8\
Rear Wheel	12\

Power

Battery	24V / 12A, 20A, 40A lithium
Motor	Worm gear & worm 500W x 2

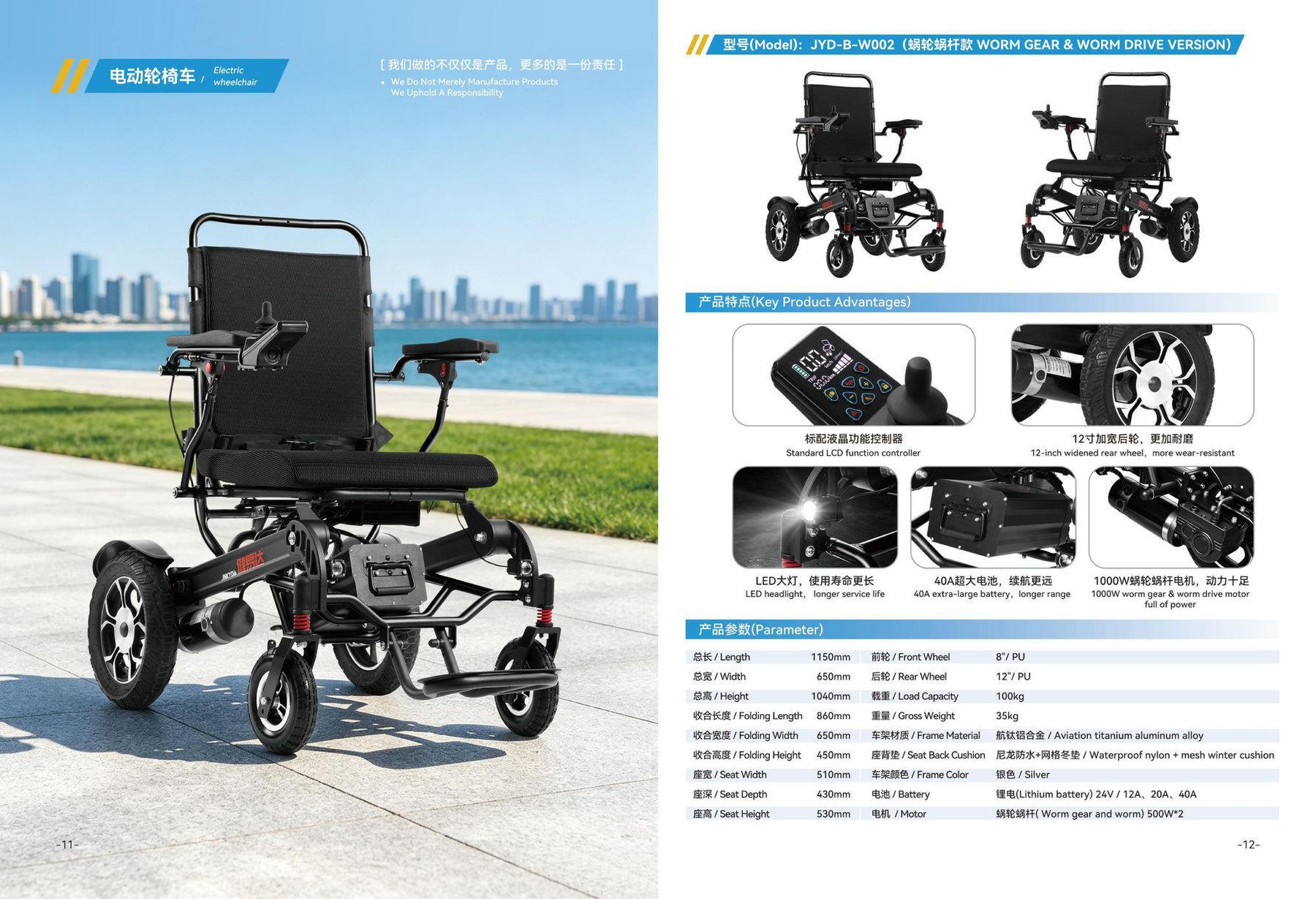

Product Catalog Sheet

Original page from the Jingshi product catalogue.

Request a Quote for JYD-B-W002

Why buyers choose JYD-B-W002

JYD-B-W002 Heavy-Duty Worm Drive Electric Wheelchair from Dongguan Jingshi Technology is built for B2B buyers who need consistent quality and clear specifications. Every unit is checked before shipment, and the model is tested to EN 12184 and ISO 7176 standards. We supply distributors, importers and healthcare brands worldwide, with OEM/ODM branding, custom colours and packaging available.

Full catalogue and test reports: Downloads page · Certifications: EN 12184 & ISO 7176 · See it in action: product videos
