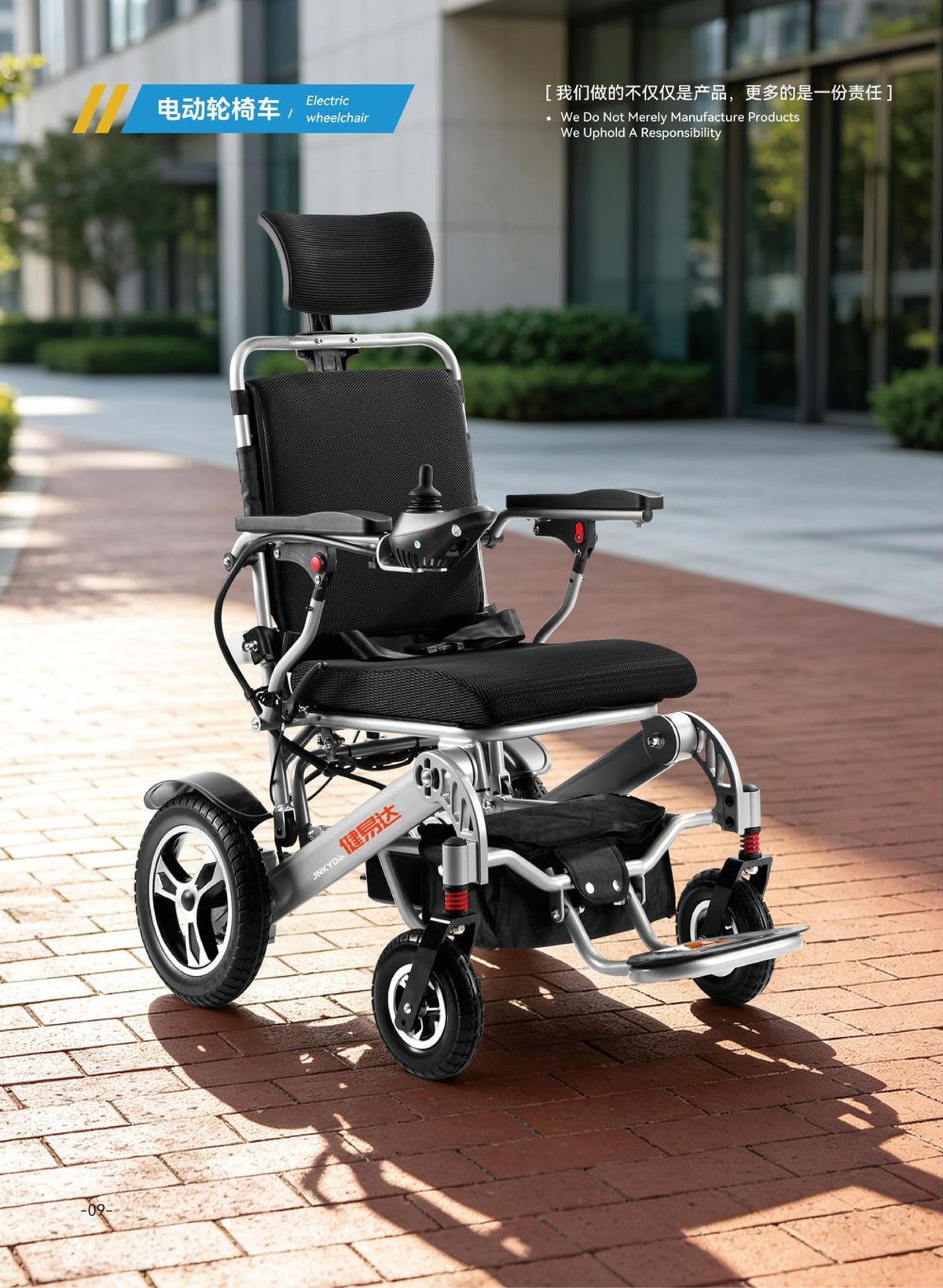

JYD-B-W002-H Reclining Electric Wheelchair

Model: JYD-B-W002-H

Category: Electric Wheelchair | Load: 100 kg | Weight: 31 kg

One-click recline up to 135°
Ergonomic headrest, breathable and comfortable
Thickened aluminum alloy wheel hub with puncture-proof PU tire

Request a Quote for JYD-B-W002-H

Also available: reclining electric wheelchair · lie-flat wheelchair · comfort wheelchair. OEM/ODM, wholesale and export worldwide.

Technical Specifications

Dimensions & Weight

Overall Length	980 mm
Overall Width	620 mm
Overall Height	1150 mm
Folding Length	710 mm
Folding Width	310 mm
Folding Height	730 mm
Gross Weight	31 kg
Frame Material	Aviation titanium aluminum alloy

Load &Seating

Load Capacity	100 kg
Seat Width	440 mm
Seat Depth	430 mm
Seat Height	520 mm
Front Wheel	8\
Rear Wheel	12\

Power

Battery	24V / 12A-20A lithium
Motor	250W x 2

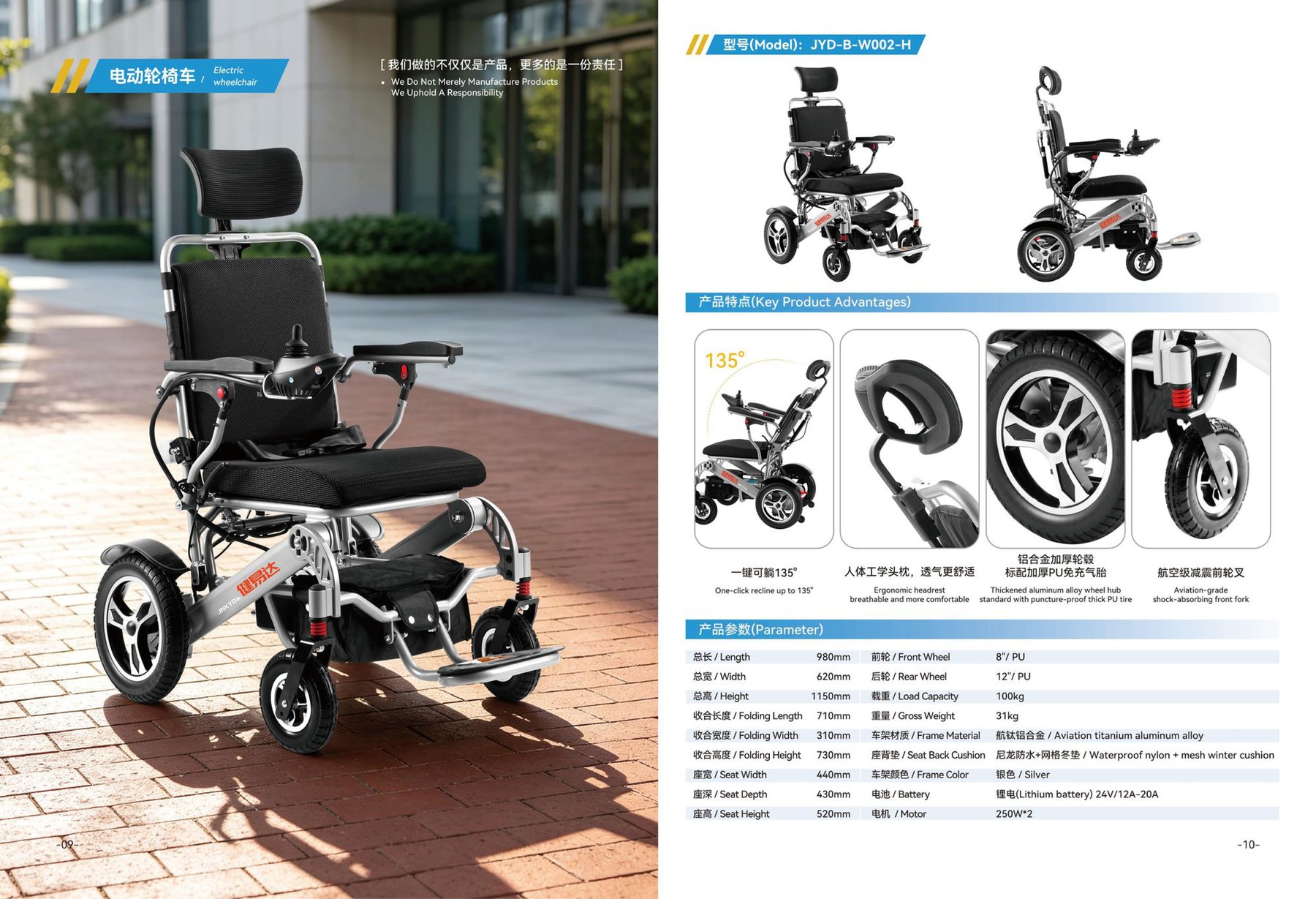

Product Catalog Sheet

Original page from the Jingshi product catalogue.

Request a Quote for JYD-B-W002-H

Why buyers choose JYD-B-W002-H

JYD-B-W002-H Reclining Electric Wheelchair from Dongguan Jingshi Technology is built for B2B buyers who need consistent quality and clear specifications. Every unit is checked before shipment, and the model is tested to EN 12184 and ISO 7176 standards. We supply distributors, importers and healthcare brands worldwide, with OEM/ODM branding, custom colours and packaging available.

Full catalogue and test reports: Downloads page · Certifications: EN 12184 & ISO 7176 · See it in action: product videos
