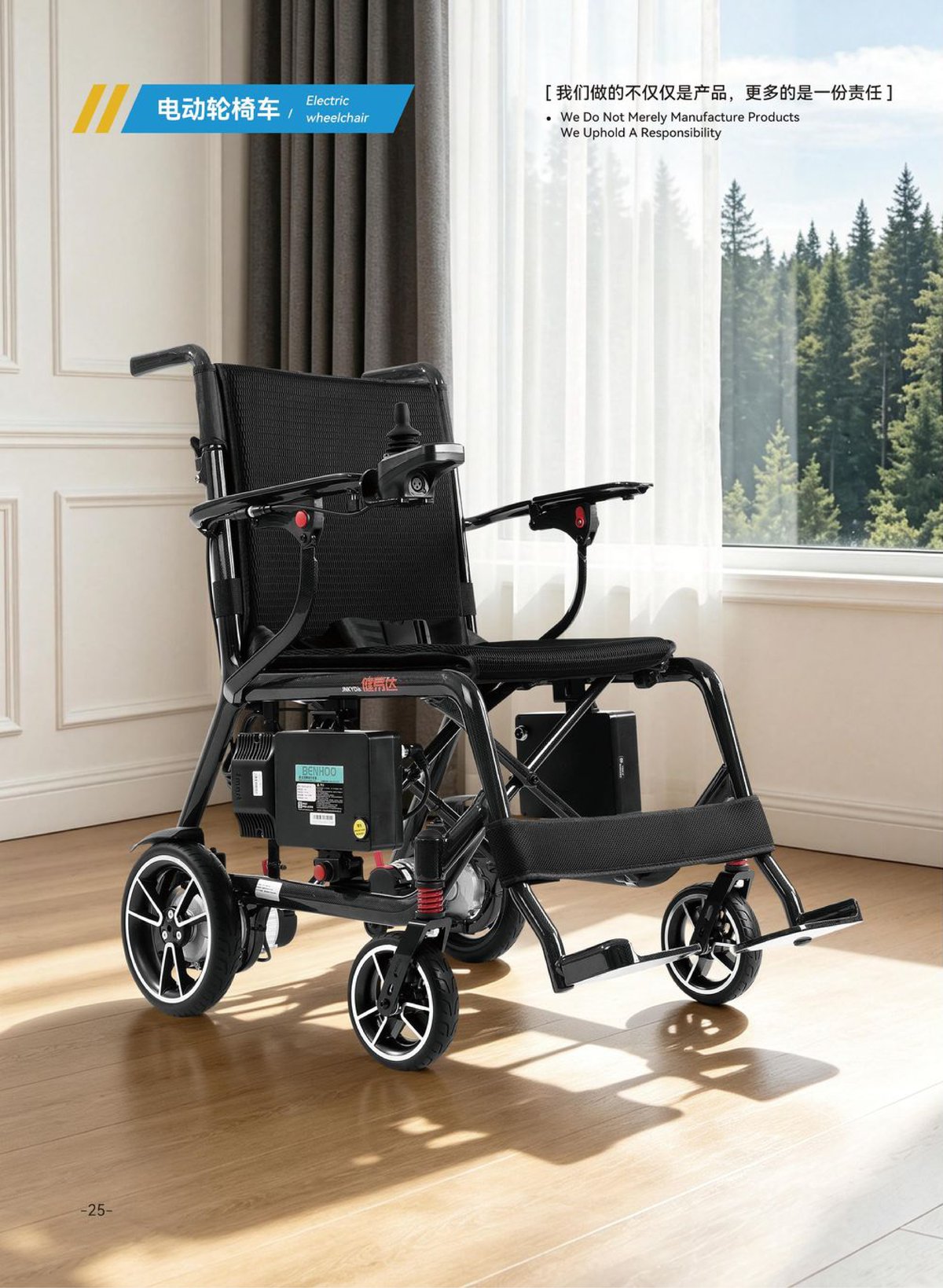

JYD-B-W002-05 Featherweight Carbon Fiber Electric Wheelchair

Model: JYD-B-W002-05

Category: Electric Wheelchair | Load: 100 kg | Weight: 13.5 kg (battery not included)

Easy to fold and fit into car trunk
Removable battery, capacity expandable by 20A
Standard electromagnetic brake for safety

Request a Quote for JYD-B-W002-05

Also available: lightweight wheelchair · ultralight wheelchair · travel wheelchair. OEM/ODM, wholesale and export worldwide.

Technical Specifications

Dimensions & Weight

Overall Length	980 mm
Overall Width	620 mm
Overall Height	900 mm
Folding Length	980 mm
Folding Width	260 mm
Folding Height	750 mm
Gross Weight	13.5 kg (battery not included)
Frame Material	Carbon fiber

Load &Seating

Load Capacity	100 kg
Seat Width	460 mm
Seat Depth	430 mm
Seat Height	500 mm
Front Wheel	7\
Rear Wheel	10\

Power

Battery	24V / 10A lithium
Motor	200W x 2

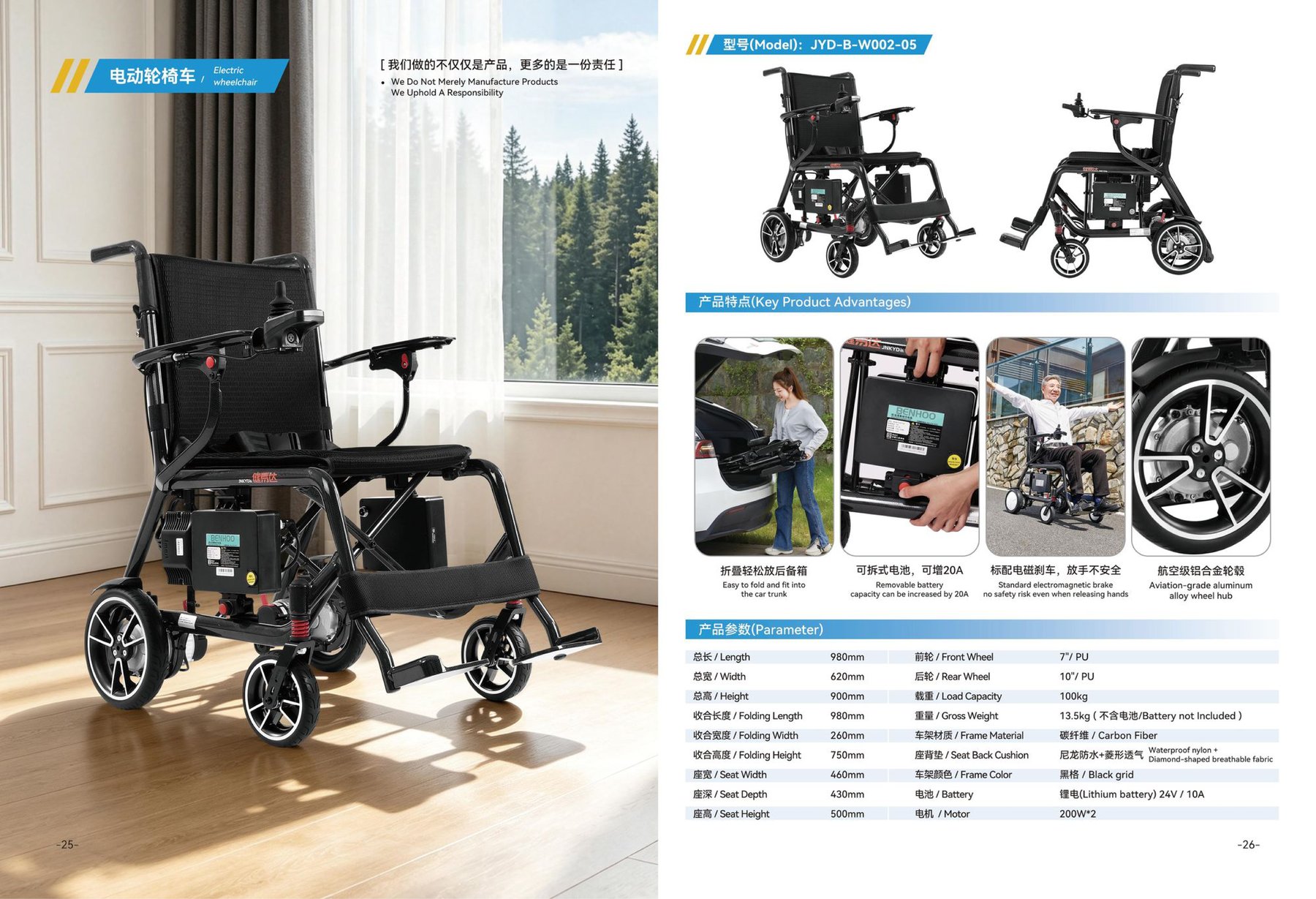

Product Catalog Sheet

Original page from the Jingshi product catalogue.

Request a Quote for JYD-B-W002-05

Why buyers choose JYD-B-W002-05

JYD-B-W002-05 Featherweight Carbon Fiber Electric Wheelchair from Dongguan Jingshi Technology is built for B2B buyers who need consistent quality and clear specifications. Every unit is checked before shipment, and the model is tested to EN 12184 and ISO 7176 standards. We supply distributors, importers and healthcare brands worldwide, with OEM/ODM branding, custom colours and packaging available.

Full catalogue and test reports: Downloads page · Certifications: EN 12184 & ISO 7176 · See it in action: product videos
