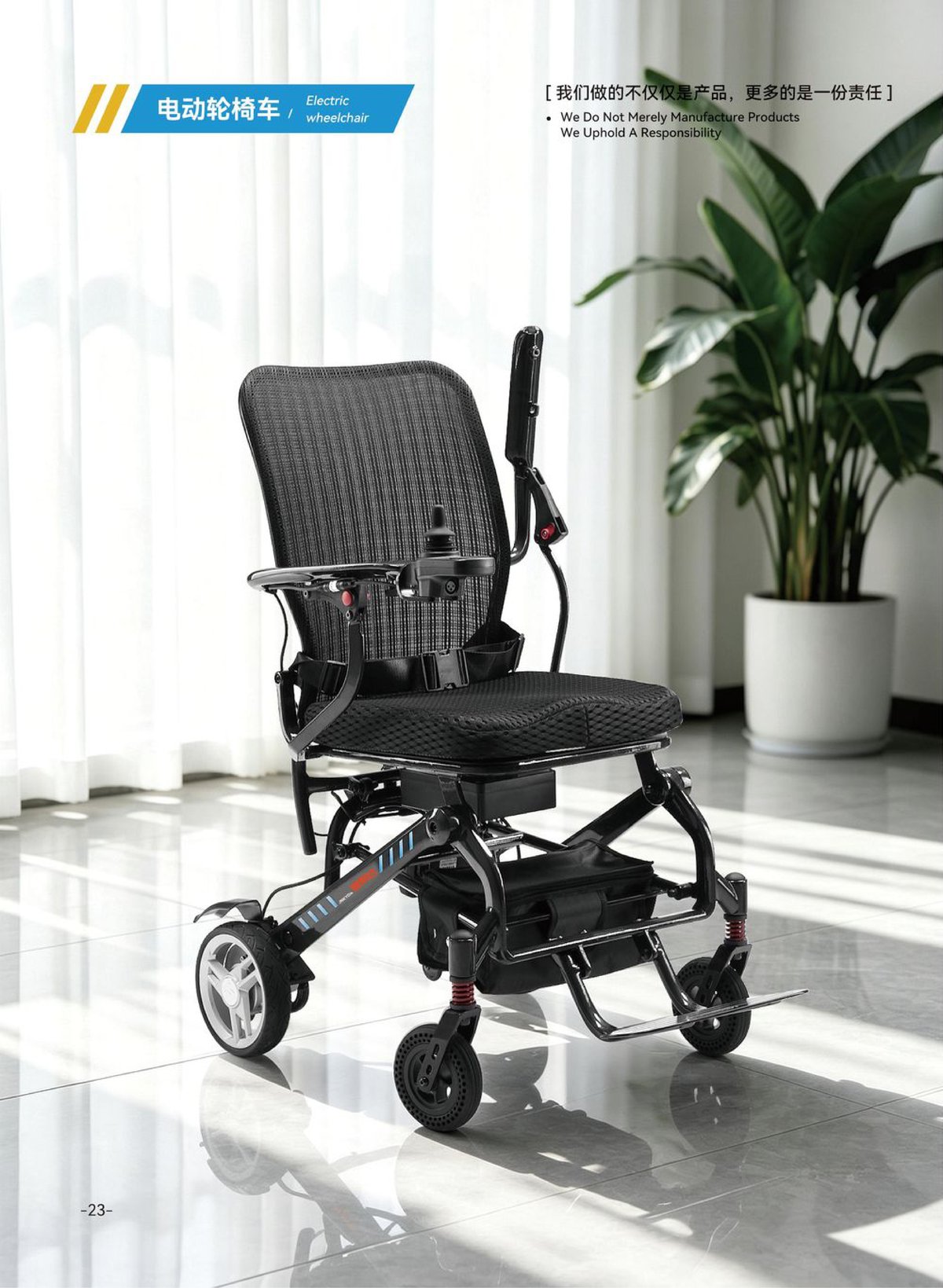

JYD-B-W002-03 Ultra-Light Carbon Fiber Electric Wheelchair

Model: JYD-B-W002-03

Category: Electric Wheelchair | Load: 100 kg | Weight: 15.6 kg

Easy to lift even for the elderly
Dual charging options (car charger & home outlet)
Ultra-compact after folding, easy to store

Request a Quote for JYD-B-W002-03

Also available: lightweight wheelchair · ultralight wheelchair · travel wheelchair. OEM/ODM, wholesale and export worldwide.

Technical Specifications

Dimensions & Weight

Overall Length	890 mm
Overall Width	570 mm
Overall Height	1000 mm
Folding Length	730 mm
Folding Width	570 mm
Folding Height	370 mm
Gross Weight	15.6 kg
Frame Material	Carbon fiber

Load &Seating

Load Capacity	100 kg
Seat Width	450 mm
Seat Depth	420 mm
Seat Height	550 mm
Front Wheel	6\
Rear Wheel	8\

Power

Battery	24V / 10A lithium
Motor	140W x 2

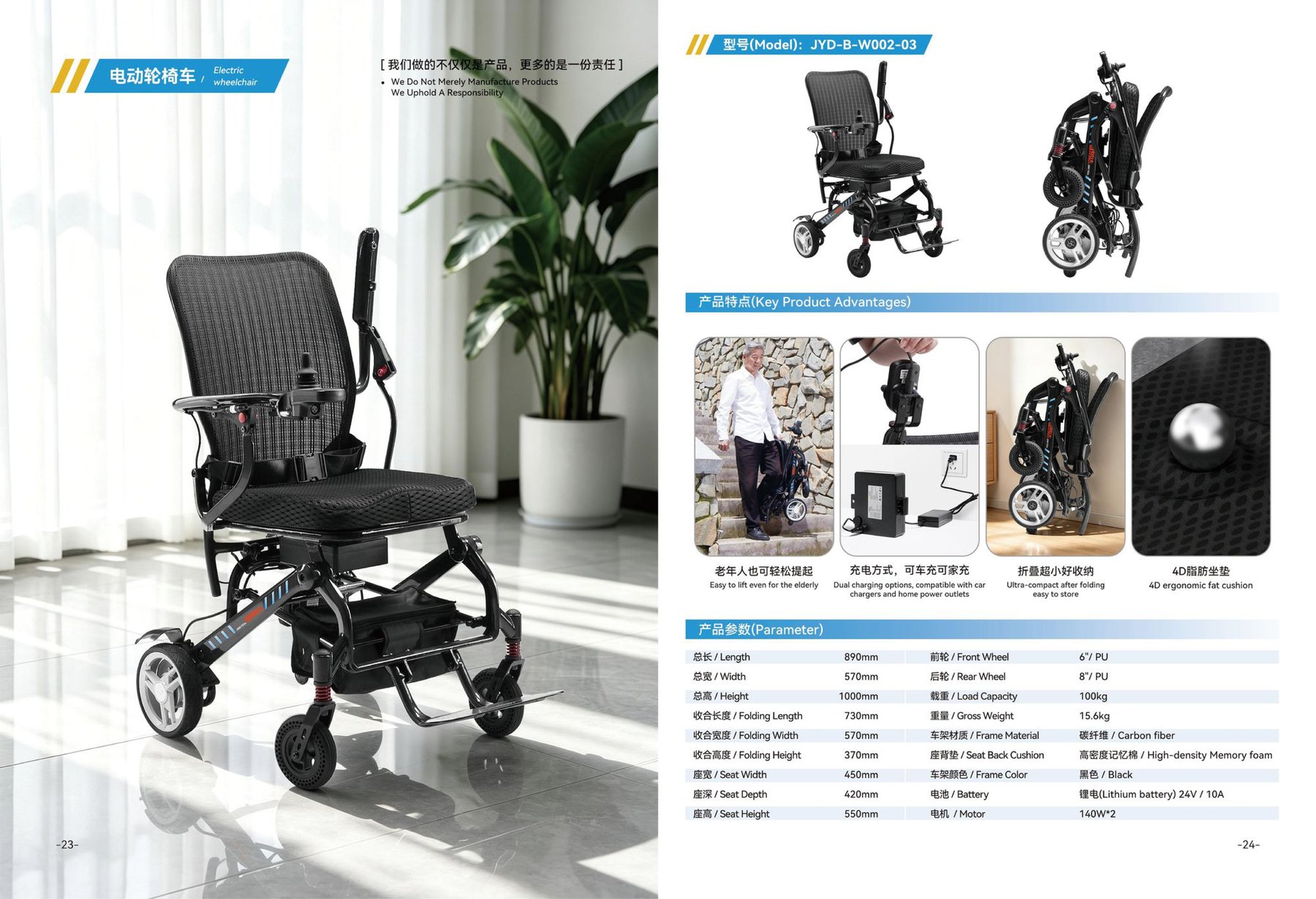

Product Catalog Sheet

Original page from the Jingshi product catalogue.

Request a Quote for JYD-B-W002-03

Why buyers choose JYD-B-W002-03

JYD-B-W002-03 Ultra-Light Carbon Fiber Electric Wheelchair from Dongguan Jingshi Technology is built for B2B buyers who need consistent quality and clear specifications. Every unit is checked before shipment, and the model is tested to EN 12184 and ISO 7176 standards. We supply distributors, importers and healthcare brands worldwide, with OEM/ODM branding, custom colours and packaging available.

Full catalogue and test reports: Downloads page · Certifications: EN 12184 & ISO 7176 · See it in action: product videos
