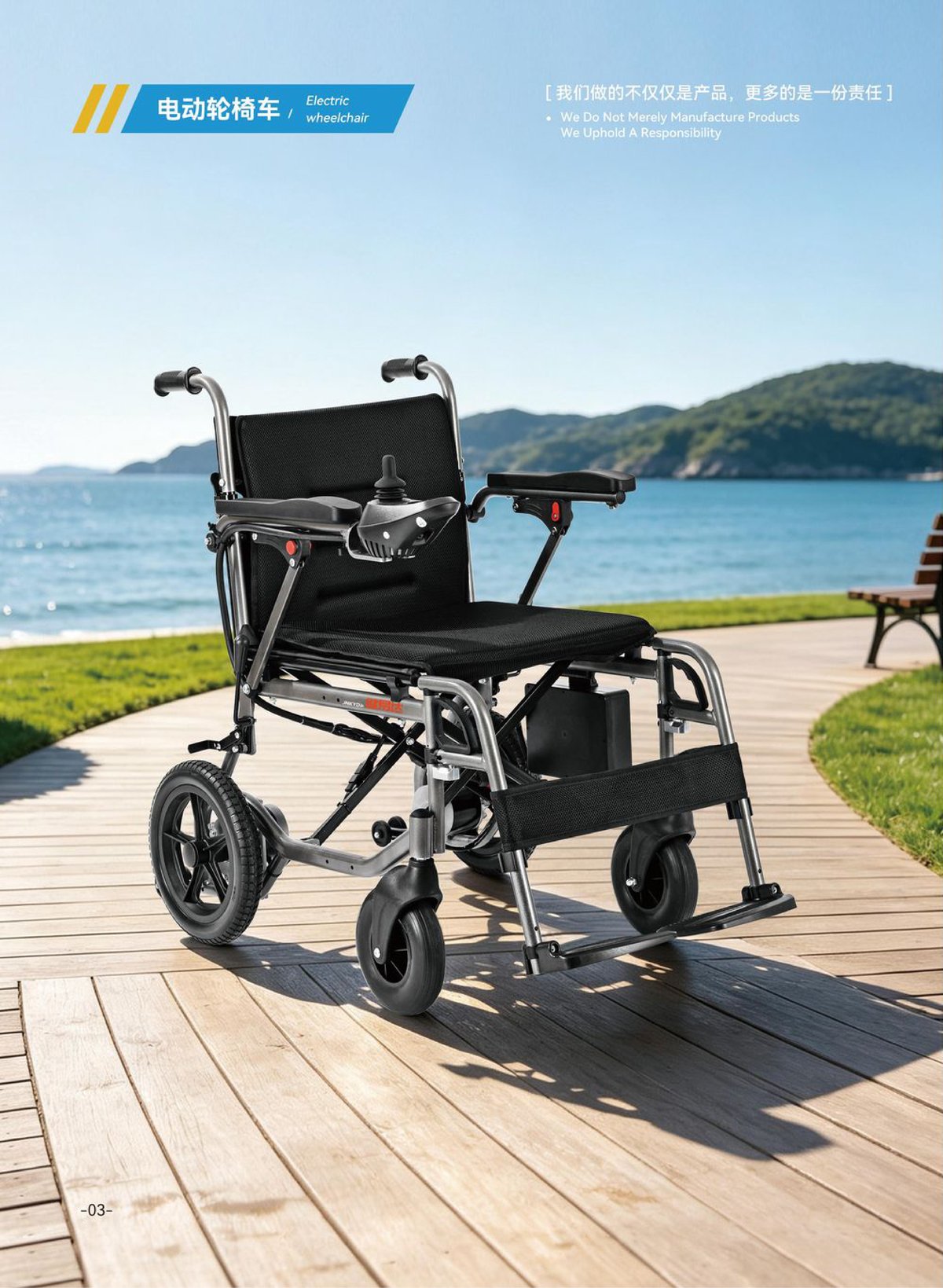

JYD-B-W001 Lightweight Folding Electric Wheelchair

Model: JYD-B-W001

Category: Electric Wheelchair | Load: 100 kg | Weight: 19.8 kg

Offset motor structure, ultra-slim 29 cm after folding
48 cm widened seat, suitable for more users
Bidirectional detachable footrest

Request a Quote for JYD-B-W001

Also available: foldable electric wheelchair · lightweight folding wheelchair · travel wheelchair. OEM/ODM, wholesale and export worldwide.

Technical Specifications

Dimensions & Weight

Overall Length	1050 mm
Overall Width	620 mm
Overall Height	880 mm
Folding Length	710 mm
Folding Width	310 mm
Folding Height	730 mm
Gross Weight	19.8 kg
Frame Material	Aviation titanium aluminum alloy

Load &Seating

Load Capacity	100 kg
Seat Width	480 mm
Seat Depth	420 mm
Seat Height	490 mm
Front Wheel	8\
Rear Wheel	12\

Power

Battery	24V / 10A lithium (expandable)
Motor	180W x 2

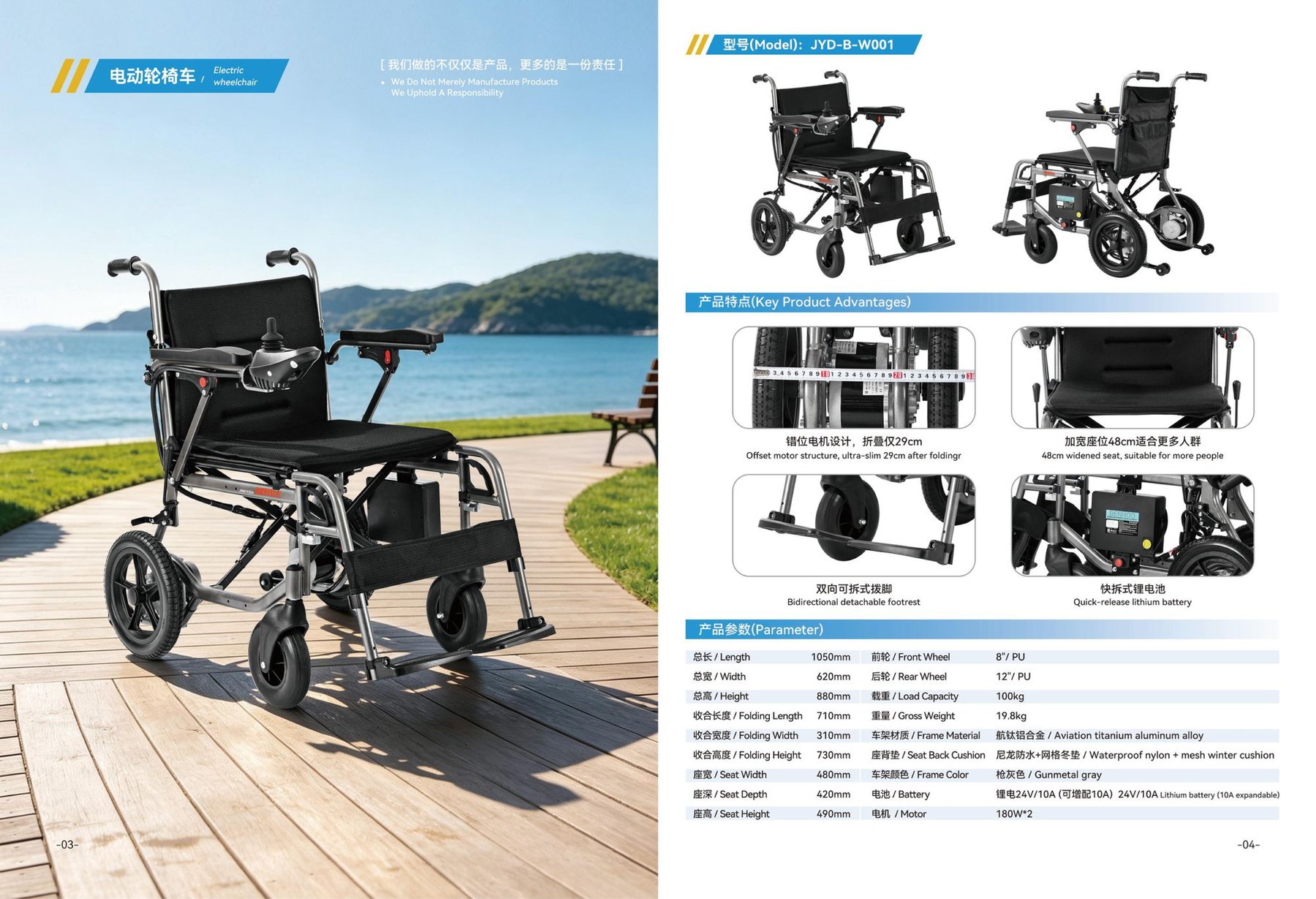

Product Catalog Sheet

Original page from the Jingshi product catalogue.

Request a Quote for JYD-B-W001

Why buyers choose JYD-B-W001

JYD-B-W001 Lightweight Folding Electric Wheelchair from Dongguan Jingshi Technology is built for B2B buyers who need consistent quality and clear specifications. Every unit is checked before shipment, and the model is tested to EN 12184 and ISO 7176 standards. We supply distributors, importers and healthcare brands worldwide, with OEM/ODM branding, custom colours and packaging available.

Full catalogue and test reports: Downloads page · Certifications: EN 12184 & ISO 7176 · See it in action: product videos
