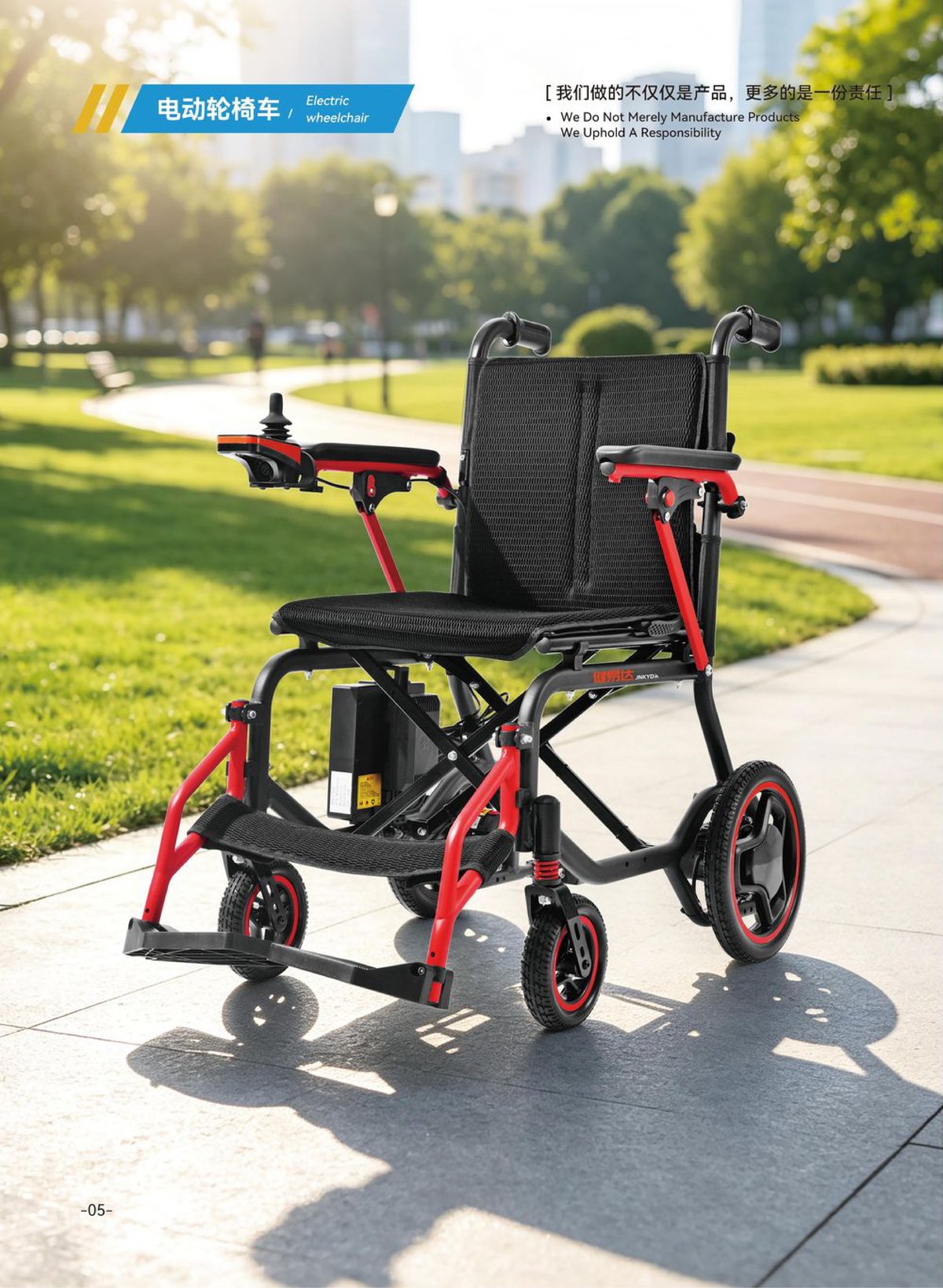

JYD-B-W001-WS Premium Foldable Electric Wheelchair

Model: JYD-B-W001-WS

Category: Electric Wheelchair | Load: 100 kg | Weight: 16.8 kg

Premium custom LCD controller
One-click quick-release lithium battery
Magnesium alloy wheel hub, lighter and sleeker

Request a Quote for JYD-B-W001-WS

Also available: foldable electric wheelchair · lightweight folding wheelchair · travel wheelchair. OEM/ODM, wholesale and export worldwide.

Technical Specifications

Dimensions & Weight

Overall Length	1000 mm
Overall Width	550 mm
Overall Height	890 mm
Folding Length	710 mm
Folding Width	280 mm
Folding Height	700 mm
Gross Weight	16.8 kg
Frame Material	Aviation titanium aluminum alloy

Load &Seating

Load Capacity	100 kg
Seat Width	440 mm
Seat Depth	420 mm
Seat Height	490 mm
Front Wheel	7\
Rear Wheel	11\

Power

Battery	24V / 10A lithium (expandable)
Motor	200W x 2

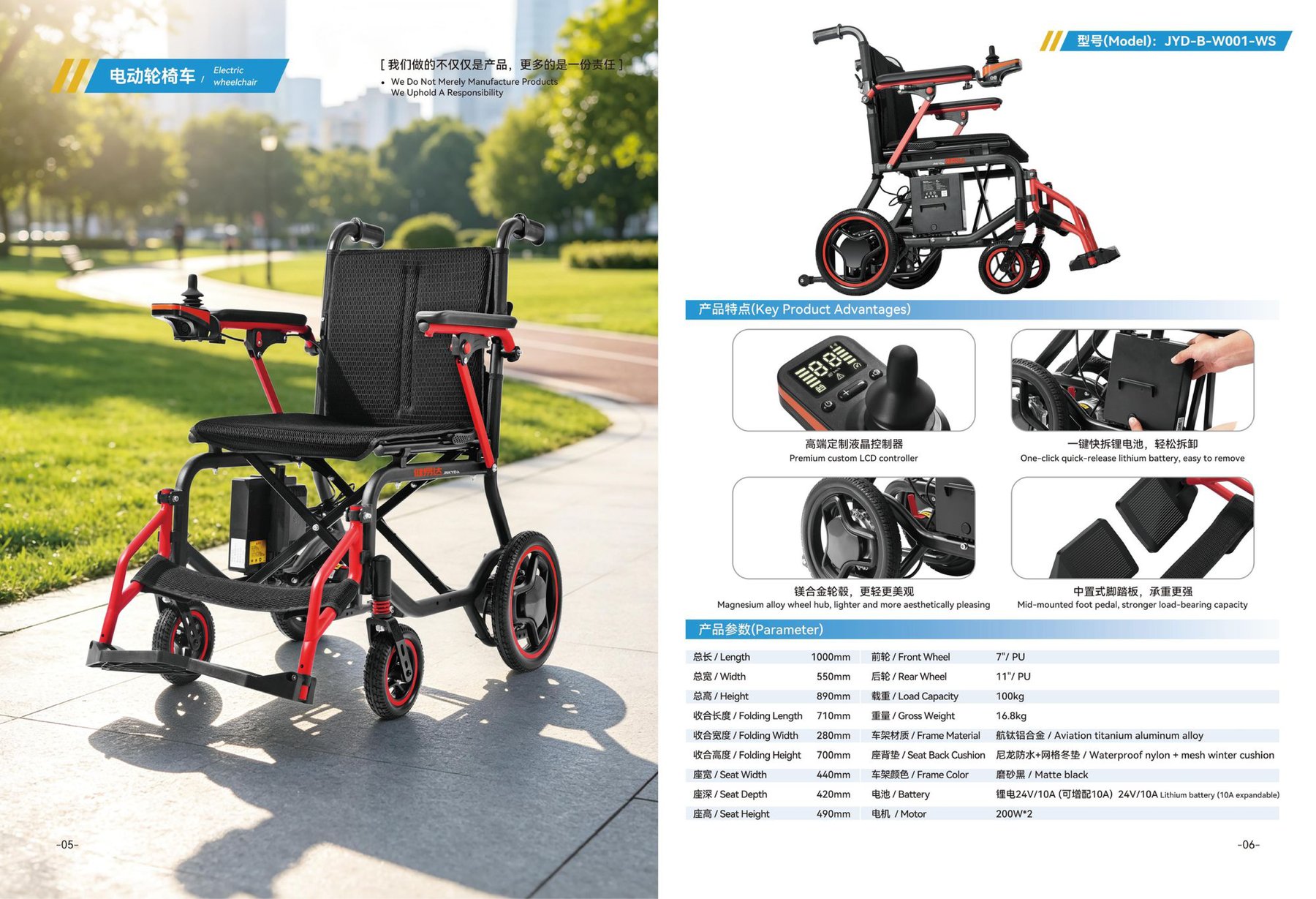

Product Catalog Sheet

Original page from the Jingshi product catalogue.

Request a Quote for JYD-B-W001-WS

Why buyers choose JYD-B-W001-WS

JYD-B-W001-WS Premium Foldable Electric Wheelchair from Dongguan Jingshi Technology is built for B2B buyers who need consistent quality and clear specifications. Every unit is checked before shipment, and the model is tested to EN 12184 and ISO 7176 standards. We supply distributors, importers and healthcare brands worldwide, with OEM/ODM branding, custom colours and packaging available.

Full catalogue and test reports: Downloads page · Certifications: EN 12184 & ISO 7176 · See it in action: product videos
